15-degree rack
Brief description
40 high-density integration, large capacity Suitable for lightweight commercial use, intelligent Equipped with BMS, safe and efficient Easy to deploy.
Detailed Description
4U lightweight commercial energy storage solution with Class A lithium iron phosphate battery cells, 4U rack integrating 15 kWh high-density capacity; intelligent BMS for precise management and control, wide-temperature intelligent cooling without noise, full coverage of international certifications, suitable for small computer rooms, commercial backup power, and edge computing nodes.
Product Features
1.High density and large capacity: 40 rack sizes can hold 15 kWh of electricity, with excellent space utilization.
2.Flexible compatibility: Standard rack installation, plug-and-play, compatible with various commercial cabinets.
3.Intelligent protection: BMS real-time monitoring, multiple safety protections + international certification.
4.Durable and silent: ≥5000 cycles, efficiency ≥95%, wide-temperature intelligent heat dissipation.
| Product Name | 15-degree rack | ||
| Capacity (Ah) | 280Ah | Design life | > 6000次 |
| Nominal energy (KWh) | 10-20KWH | Operating temperature (°C) | -10~50℃ |
| Module Specification | Efficiency (%) | 95 | |

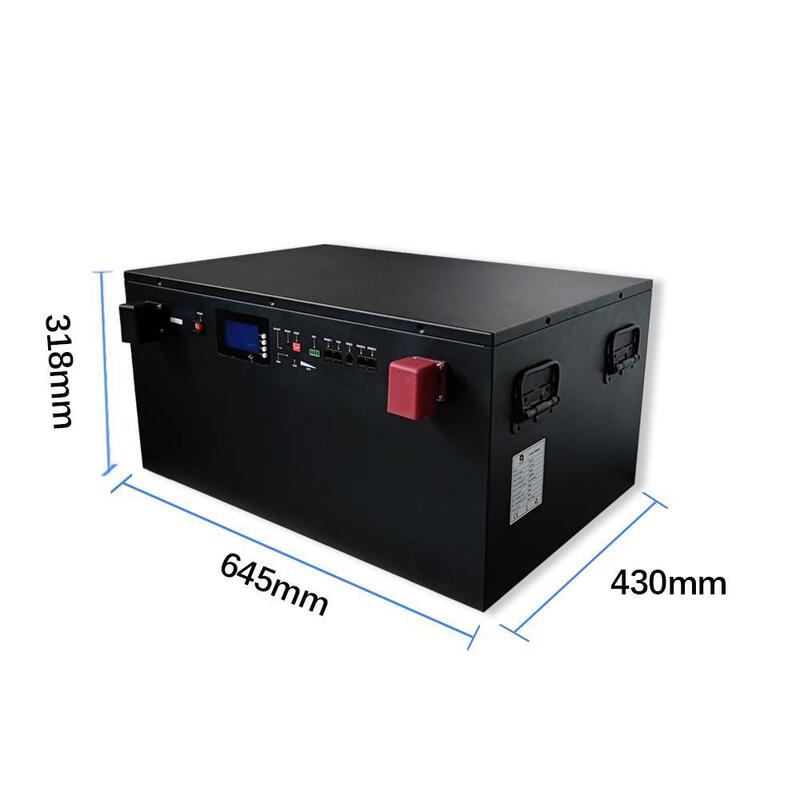

| Nominal voltage (V) | 51.2 V | Product Size: length / width / height (mm) | 645*430 * 318 |
| Operating voltage (A) | Product Weight (KG) | 117kg | |
| Maximum discharge current (A) | 200 | Warranty Period (years) | 5year |
| Continuous charging Current (A) | 140A | Environmental humidity Range (%) | |
| Battery technology | Lithium Iron Phosphate | Cooling method | Natural cooling |

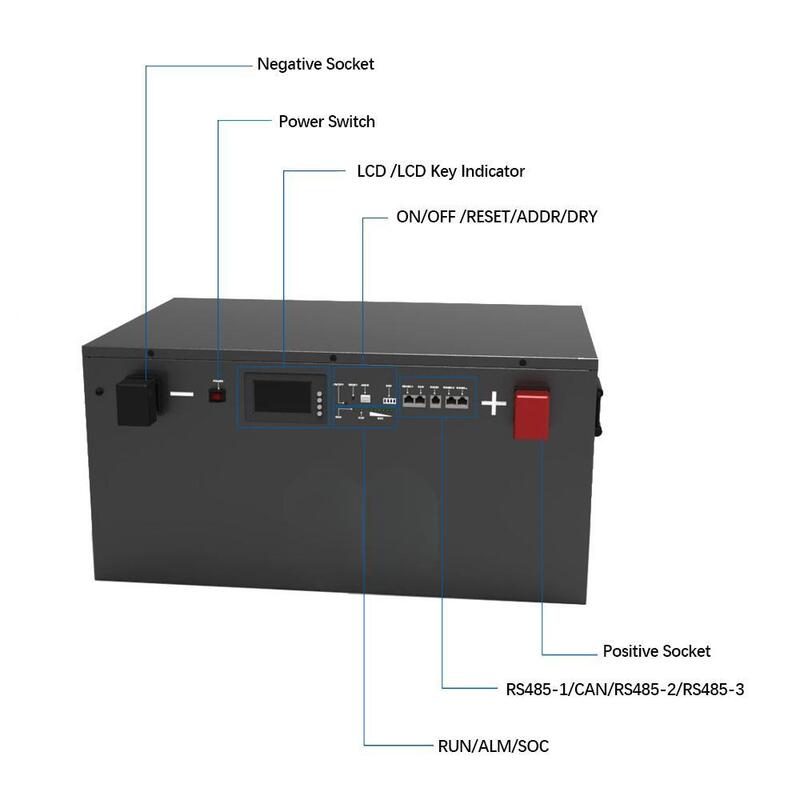

| Communication BMS Method | rs485, jar-shaped | Installation | parallel |
| Protection Safety | IP20 | Certificats | |
