10-degree rack
Brief description
3U Lightweight Commercial Energy Storage 10 kWh High-Density Integration | Intelligent BMS Control | Wide Temperature Range and Silent Operation | International Certification
Detailed Description
3U lightweight commercial energy storage solution with Class A lithium iron phosphate battery cells; 3U rack integrates high-density capacity of 10 kWh; intelligent BMS for precise management and control, wide temperature adaptation to multiple environments, natural heat dissipation without noise, full coverage of international certifications, suitable for small computer rooms, commercial backup power, and edge computing nodes.
Product Features
1.High density and large capacity: 30 rack sizes can accommodate 10 kWh of electricity, maximizing space utilization.
2.Flexible adaptation: Standard rack installation, plug-and-play, compatible with various commercial cabinets.
3.Intelligent protection: BMS real-time monitoring, multiple safety protections + international certification.
4.Durable and silent: ≥5000 cycles, efficiency ≥95%, wide-temperature natural heat dissipation.
| Product Name | 10-degree rack | ||
| Capacity (Ah) | 205Ah | Design life | > 6000次 |
| Nominal energy (KWh) | 10 ~ 20KWH | Operating temperature (°C) | -10~50℃ |
| Module Specification | Efficiency (%) | 95 | |

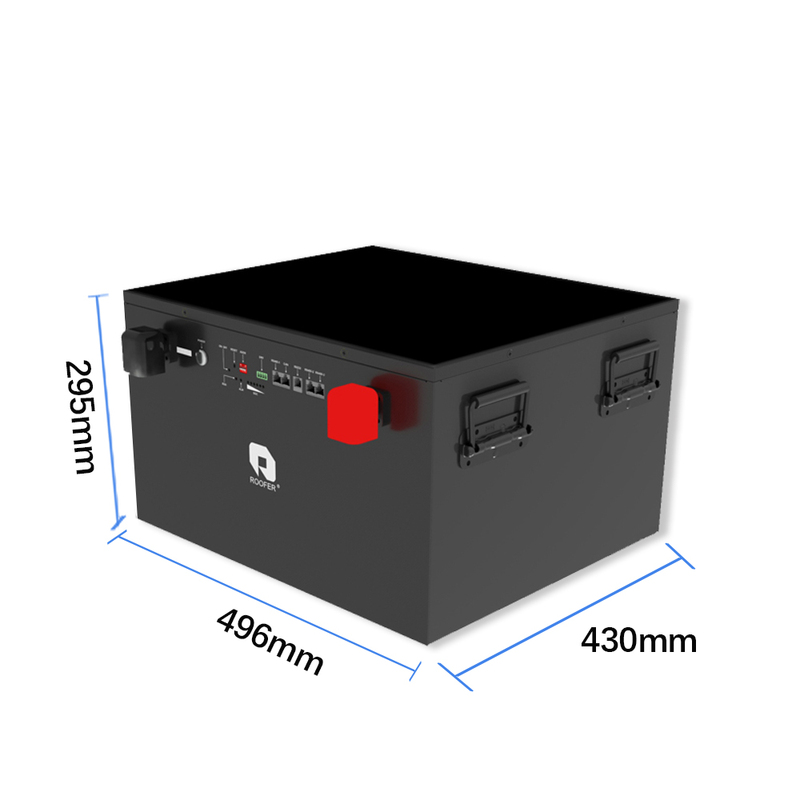

| Nominal voltage (V) | 51.2 V | Product Size: length / width / height (mm) | 496*430*295 |
| Operating voltage (A) | Product Weight (KG) | 89kg | |
| Maximum discharge current (A) | 150A | Warranty Period (years) | 5year |
| Continuous charging Current (A) | 100A | Environmental humidity Range (%) | |
| Battery technology | Lithium Iron Phosphate | Cooling method | Natural cooling |

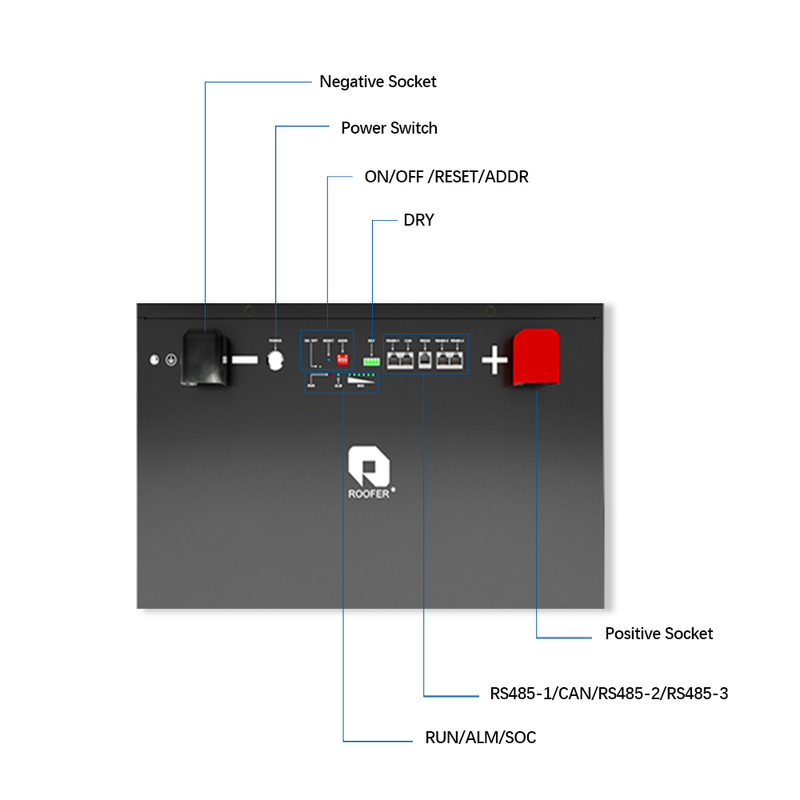

| Communication BMS Method | rs485, jar-shaped | Installation | parallel |
| Protection Safety | IP20 | Certificats | |
